1、節能效益,按WZ1000型計算,一年節約蒸汽3500噸,節約水9萬噸,節約電8萬度,折人民幣10-15萬元.(與同規格的單效對比)
2、本濃縮器采用二效同時蒸發，二次蒸汽得到充分利用既節省了鍋爐的投資，又節約能耗，能耗與單效濃縮器相比降低50%。
3、本設備采用外加熱自然循環與真空負壓蒸發方式，蒸發速度快，濃縮比重大。液料在全密封中無泡沫濃縮，用本設備濃縮出來的藥液，具有*，藥味濃。清洗方便（打開加熱器的上蓋即可）
4、本設備與液料接觸部位均采用（OCr18Ni9）不銹鋼制成，符合GMP標準。加熱器、蒸發器、外加保溫，保溫外層用花紋不銹鋼薄板，設備在車間顯得更為豪華美觀。
Usage
This equipment is suitable for low temperature vacuum condensation of heat-sensitive materials such as Chinese medicine, western medicine, glucose, wine, starch, oral
solution, chemicals, foodstuffs, monosodium glutamate and dairy products. You may choose different concentrator according to different concentrating requirement.
Features and benefits
1. Energy-saving Calculated with WZ1000 type, it will save 3500 tons of vapor, 9 tons of water, 80000 KWh of electricity, equivalent to 100-150 thousand yuan(compared with
single-effect one of same specification).

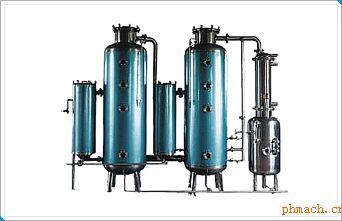

2. This concentrator uses double-effect vapor, not only saving investment on boiler, but also saving energy, reducing 50% compared with single-effect concentrator.
3. This equipment uses extrinsic heating natural circulation and vacuum pressure evaporation, with fast evaporation speed and large specific density of concentration.
The fluid is concentrated without foam in totally enclosed condition. The extract from this equipment is without pollution, with thick medicinal flavor. It is easy to clean(just
open the top cover of the heater).
4. The parts in contact with fluid in this equipment are made of OCr18Ni9 stainless steel in conformity with GMP standard. The heater and evaporator are covered with heat
preservation layers with outer surface made of checkered stainless steel sheet.
|
|
型 號 Item |
DJZ500a |
DJZ1000a |
DJZ1500a |
DJZ2000a |
|
蒸發量（kg/h清水）
Evaporation capacity(clear water) |
500 |
1000 |
1500 |
2000 |
|
耗汽量 （kg/h）
Vapor consumption |
250 |
500 |
750 |
1000 |
|
外形尺寸：長×寬×高（M）
Dimensions |
4×1.3×3.5 |
5×1.6×3.5 |
5.7×1.7×4 |
6.3×1.8×4.5 |
|
循環耗水量 （T/h）
Recycling water consumption |
6 |
12 |
15 |
18 |
|
蒸發溫度
Evaporation temperature |
一效 First effect |
80-90 |
真空度（MPa）
Vacuum |
一效 First effect |
0.02-0.04 |
|
二效 Second effect |
55-70 |
二效 Second effect |
0.05-0.08 |
|
蒸汽壓力（MPa） Vapor pressure |
一效0.2 First effect |
濃縮比重 Concentration ratio |
1.2-1.3 |
|
容器類別
Vessel type |
一 類 First class |
| |
